Aputure LS 60x

Rental Rates:
One Day: $35
Weekly (7 Days): $105

iffilmcrew@gmail.com

What's in the Case

  • 1x LS 60x

  • 1x LS 60 8-Leaf Barndoors

  • 1x Power Supply

  • 1x AC IEC Power Cable

  • 1x Dual Sony NP-F Battery Plate Adapter for LS 60

  • 1x D-Tap Power Cable (4-Pin)

  • 1x Bowens Mount to LS 60 Adapter

  • 1x Carrying Case

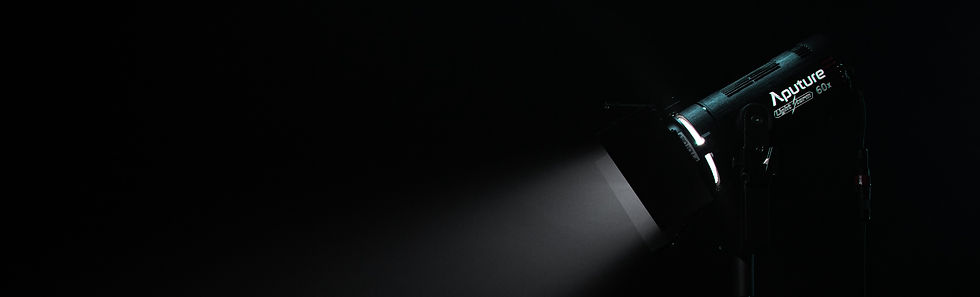

The LS 60x is a battery-powerable bi-color focusing LED that uses custom aspherical optics to achieve a 15-45° spot-flood beam angle with intense output and flexibility. The LS 60x comes equipped with 8-Leaf Barndoors for more precise control over the size and shape of your light.  The LS 60x also comes with a custom Bowens Mount Adapter that allows it to use a wide variety of Bowens Mount lighting modifiers.

​

​​

Use Tip 1 - Build-in Fresnel

60x has build-in Fresnel, turn the center bottom knob for better control the beam angle of the lighting.

Use Tip 2 - Accent Light

60x is perfect to create pocket of light to the scene, and edge light for subjects. Plus, it is light weight enough to mount almost ever

Light Fixture

Item Type

Included Light Modifier

Included Storage Case

Photometrics
















Color Temperature

Color Modes

Color Accuracy Standard


Dimming


Cooling System

Beam Angle

Built-In Flash

Umbrella Mount

Front Accessory Mount
1x LED Focusing Flood Light

1x Barndoors

1x Case

15° at 3200K:
2799 fc / 30,132 Lux at 3.3' / 1 m
352 fc / 3794 Lux at 9.8' / 3 m
124 fc / 1339 Lux at 16.4' / 5 m
45° at 3200K:
497 fc / 5357 Lux at 3.3' / 1 m
60 fc / 647 Lux at 9.8' / 3 m
20 fc / 223 Lux at 16.4' / 5 m
15° at 5600K:
3110 fc / 33,480 Lux at 3.3' / 1 m
393 fc / 4241 Lux at 9.8' / 3 m
134 fc / 1451 Lux at 16.4' / 5 m
45° at 5600K:
539 fc / 5803 Lux at 3.3' / 1 m
65 fc / 703 Lux at 9.8' / 3 m
24 fc / 268 Lux at 16.4' / 5 m

2700 to 6500K

Daylight, Tungsten

CRI 95
TLCI 95

App-Controlled / Built-In Dimmer (Continuous)
• 0 to 100%

Fan

15 to 45°

No

No

Proprietary

Connectivity

Wireless Remote Control Type

Mobile App Compatible


Wireless Range


Bluetooth

Yes: Android & iOS
App Name: Sidus Link

262.5' / 80 m

Power & I/O

Power Source


Inputs/Outputs

Battery Plate Type


Battery





Input Power


Included Adapter / Cable


Power Consumption




AC to DC Adapter (Included)
Battery (Not Included)

1x Built-In Cable with Proprietary Power Input

2x Sony L-Series / NP-F (Included)
1x V-Mount (Not Included)

2x Sony-Type L-Series / NP-F Rechargeable, 12 to 16.8 VDC (Not Included)
or
1x Sony-Type L-Series / NP-F Rechargeable, 6 to 8.4 VDC (Not Included)
or
1x D-Tap Rechargeable, 12 to 16.8 VDC (Not Included)

100 to 240 VAC, 50 / 60 Hz
6 to 19 VDC

1x USA Type-A/B to Proprietary AC to DC Adapter
1x D-Tap to Proprietary Cable

90 W (Maximum)

Mounting

Yoke Type

Fixture Mounting
Manually-Operated Yoke

1x 5/8" Receiver (Via Yoke Mount)

Environmental

Operating Temperature

50 to 113°F / 10 to 45°C

General

Display

Certifications

Materials

Dimensions


Weight
OLED

RoHS, CE, CE RED, KC, PSE, FCC, BIS

Aluminum (Housing)

8.2 x 4.6" / 20.9 x 11.6 cm (Fixture without Yoke)
11 x 6.1 x 5" / 28 x 15.6 x 12.7 cm (Fixture with Yoke)

4 lb / 1.8 kg
